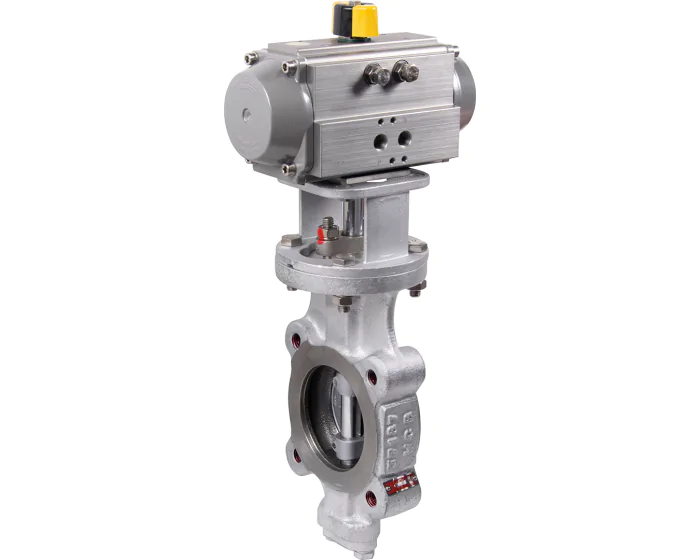

The 1117 lug type double offset butterfly valve has a carbon steel body, a CF8M (1.4408) stainless steel disc and a PTFE/graphite seat. ALPHAIR pneumatic actuation. PS: 20 bar, TS: 210°C. Mounting between flanges ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN50 - 2'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 20 |
| Connections | Between flanges #150 PN20 |
| Seats | PTFE-Graphite |
| Pneumatic actuator type | Spring return |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' | 260870017008R | S1001125 |
€680.31
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' | 260870017109R | S1001126 |
€768.01
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 | 260871017008R | S1001127 |
€706.19
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 | 260871017109R | S1001128 |
€794.07
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' | 260872017008R | S1001129 |
€885.09
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' | 260872017110R | S1001130 |
€1,056.89
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' | 260873017009R | S1001131 |
€1,260.73
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' | 260873017111R | S1001132 |
€1,495.53
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' | 260874017010R | S1001133 |
€1,271.19
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' | 260874017112R | S1001134 |
€1,504.47
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' | 260875017011R | S1001135 |
€1,765.59
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' | 260875017113R | S1001136 |
€2,223.56
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' | 260876017012R | S1001137 |
€2,652.73
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' | 260876017114R | S1001138 |
€3,172.09
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' | 260877017012R | S1001139 |
€3,150.79
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' | 260877017115R | S1001140 |
€4,345.20
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' | 260878017013R | S1001141 |
€4,248.39
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' | 260878017116R | S1001142 |
€5,399.54
(excl. btw)
|
add to cart |
